The Big Enchilada

Overview

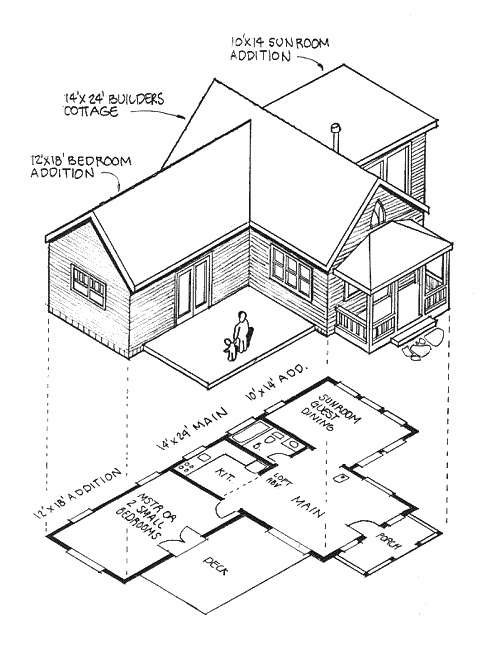

The Big Enchilada Plans can be used as a flexible small home design kit. The house at the very top of the page is only one possible combination. You can customize the plan layouts to fit your site and space needs.

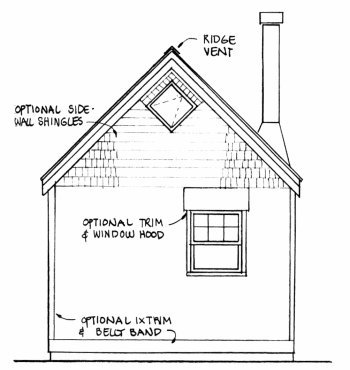

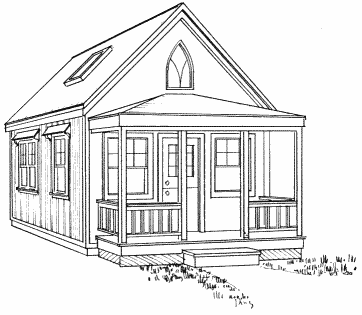

This kit starts with the Little House Plans Kit and all the included bonuses. Then we have added an upgraded core house plan for the 14' x 24' house called the 14' x 24' Builder's Cottage. This building has a concrete perimeter foundation, 2x6 walls for R-21 insulation and R-30 in the roof. These construction details can also be used in the smaller building modules added for wings and extensions with the plans kit.

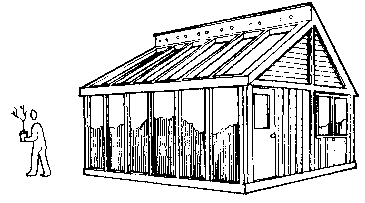

We’ve also added the Sunroom, Greenhouse & Skylight Plans, which lets you build inexpensive sunroom windows and skylights into the main house or additions. The plans include a booklet of details you may wish to include in your customized cottage or expanded home. Here are a few of the included details:

• Details for raising the sidewall to make the loft area into a full width working bedroom or office
• Details for a 7' deep porch or shed-roofed addition that can be extended along either side of the house
• Stair details for a cottage stair up to the loft
• An easy-to-build pressure-treated wood skid foundation option for making a small building moveable. (Remember the kit includes the Little House plans, perfect for building playhouses or storage buildings)
• A foundation plan for a deep pier foundation. This shows you how to do the post and pier foundation in deep-freeze climates where the soil is less than ideal
• Detail sheets for how to add additions (now or later) to the core house. These include perpendicular gable roofs and shed to gable roof connections. Add these to your customized plans

There are enough options here for just about any combination of small homestead buildings or a build-as-you-go expandable cottage (up to 14' in width). Make your own customized building plans as your project evolves. Many people use the included Builder's Cottage plan for the building permit and core house and then modify the project from there.

Plans also include:

• Superinsulation techniques for cold climates
• Hot water and heating system design notes
• A checklist and tips for going to the building department
• Trim, Siding and Money Saving Ideas
• A guide for taking your plans to the building dept. (strategies for the bureaucratic hurdles)
• The guide Evaluating your Soil - use this to determine which foundation type is appropriate for your specific site
• A guide to framing terms and the symbols and abbreviations used in building plans
